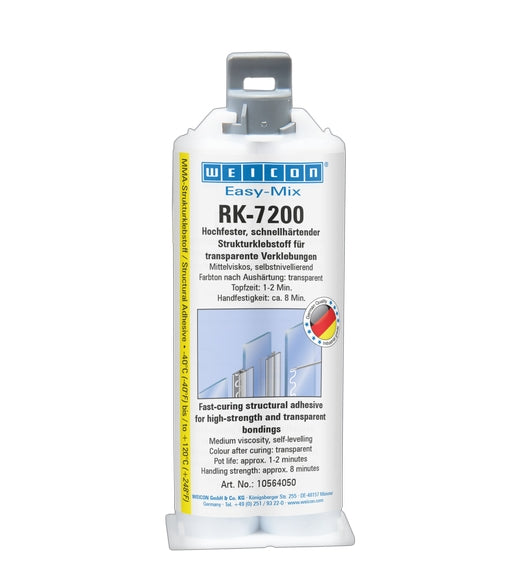

Easy Mix RK-7200 Acrylic Structural Adhesive
Perfectly transparent, high strength, impact resistance, residual elasticity
WEICON Easy-Mix RK-7200 is a high-strength, fast-curing, solvent-free structural adhesive based on MMA (methyl methacrylate) with very good adhesion to various materials. A transparent adhesive that is particularly suitable for bonding plastics and glass. WEICON Easy-Mix RK-7200 is also suitable for structural bonds where a coloured adhesive bond would disturb the overall visual impression of the component.
The Easy-Mix D 50 dispensing gun is required to process Easy-Mix products in 50 ml containers.
Application:
- For low energy plastics
- For glass
- Shelf life 6 months at 0°C to +4°C
-
Shelf life 3 months at 20°C to +25°C
Features and Benefits:
- High strength
- High adhesion
- Impact resistance
- Fast curing structural adhesive
- Solvent-free structural adhesive
- Transparent color
Technical data (data source TDS_10564050 pdf)
Base | Methyl methacrylate |
Color after curing |
Transparent, colorless |
Resin/hardener mixing ratio | 1:1 |
Viscosity of the mixture | 1.2 g/cm³ |
Viscosity of the mixture | 5,000 - 8,000 mPa s |
Processing Method | Easy Mix |
Properties | dense |
Open time at +20°C | 1-2 min |
Strength 35% | 8 min |
Mechanical load transfer (50% strength) | 120 min |
Final strength (100%) | 6 hours |
Maximum gap | 0.1 - 2.0mm |
shear strength DIN EN 1465 | |
Aluminum | 8N/mm² |
Sandblasted steel | 18N/mm² |
Stainless steel | 18N/mm² |
PC Polycarbonate | 7 N/mm² |
Tg room temperature | -17.5°C |
PMMA | 9 N/mm² |
ABS | 7 N/mm² |
Hard PVC | 8N/mm² |
GFK | 9 N/mm² |
CFK | 12 N/mm² |
Polyamide 6.6 | 2 N/mm² |
Thermal resistance | -40 to +120°C |
Product number:
|
10034573 |
EAN
|
4024596033453 |
Application method:
The conditions for perfect bonding are clean and dry surfaces (cleaning and degreasing with WEICON Surface Cleaner). Smooth surfaces should be machined. WEICON Easy-Mix products can be applied directly from the double cartridge using a static mixer. Discard the first 5 cm of the adhesive. The adhesive is applied from one side. The open times given refer to a 10 ml mixture at room temperature. Larger quantities will cure faster due to the thermal reaction typical of epoxy resins. Higher temperatures shorten the curing time and the open time of the adhesive processing. (as a guide - each 10°C above room temperature shortens both times by 50%). At temperatures below +16°C the open time and the curing time are extended. From a temperature of approx. +5°C no further reaction occurs.
Safety and health
When using WEICON products, please observe the physical, safety, toxicological and ecological data and regulations in our safety data sheets (www.weicon.de)
Available packaging and accessories:
[ 50g ] [ Easy-Mix D 50 Dosing Gun ] [ Nozzle ] [ Dosing tips ]
